Switch-Pros RCR-FORCE® 12

$980.00

Switch-Pros RCR-FORCE® 12

Features:

  • 12 user-programmable switches
  • RCR-TOUCH® switch cover (United States Design Patent No. US D922,969 S)
  • Waterproof, solid state power module
  • 150amp capacity with 17 outputs
    • 4 rated @ 35A and 1 rated @ 30A (High In-Rush circuits)
    • 11 rated @ 15A, which can be combined for larger loads
    • 1 Low Side driver switch, rated @ 2A
  • Built-in Bluetooth module
  • Program and operate accessories with phone or tablet
  • System can be used to start vehicle

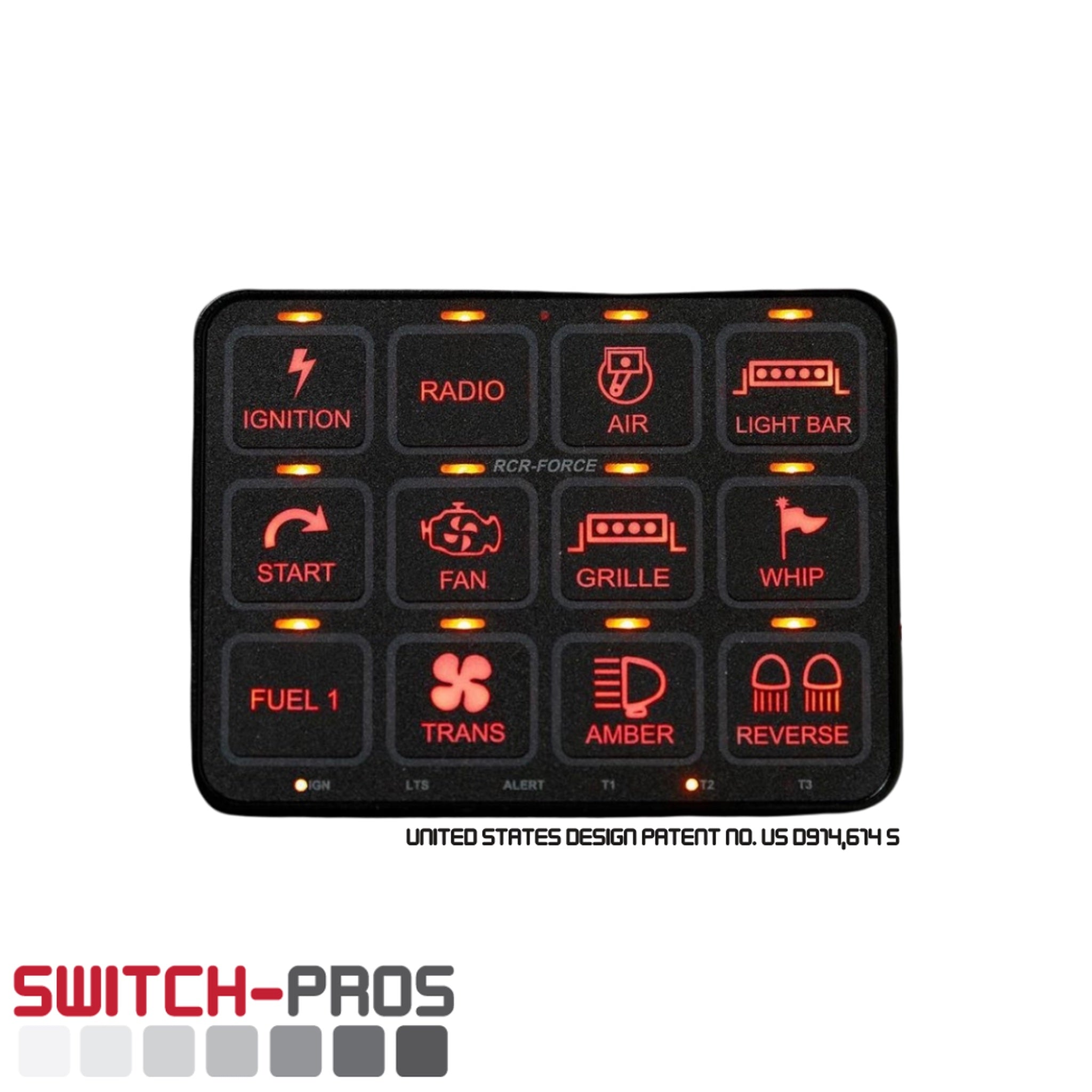

Switch Panel Specs:

  • RCR-Touch® cover, snaps on for ease of specific switch selection while wearing gloves or riding rough terrain  (United States Design Patent No. US D922,969 S)
  • Switch Panel enclosure measures 4” L x 3” W x .375” H (United States Design Patent No. US D914,614 S)
  • Splash proof with Polycarbonate overlay faceplate
  • Pre-machined for factory-look installation
  • RGB backlighting
  • Orange LED switch indicators
  • 6 Programmable LED Status indicators

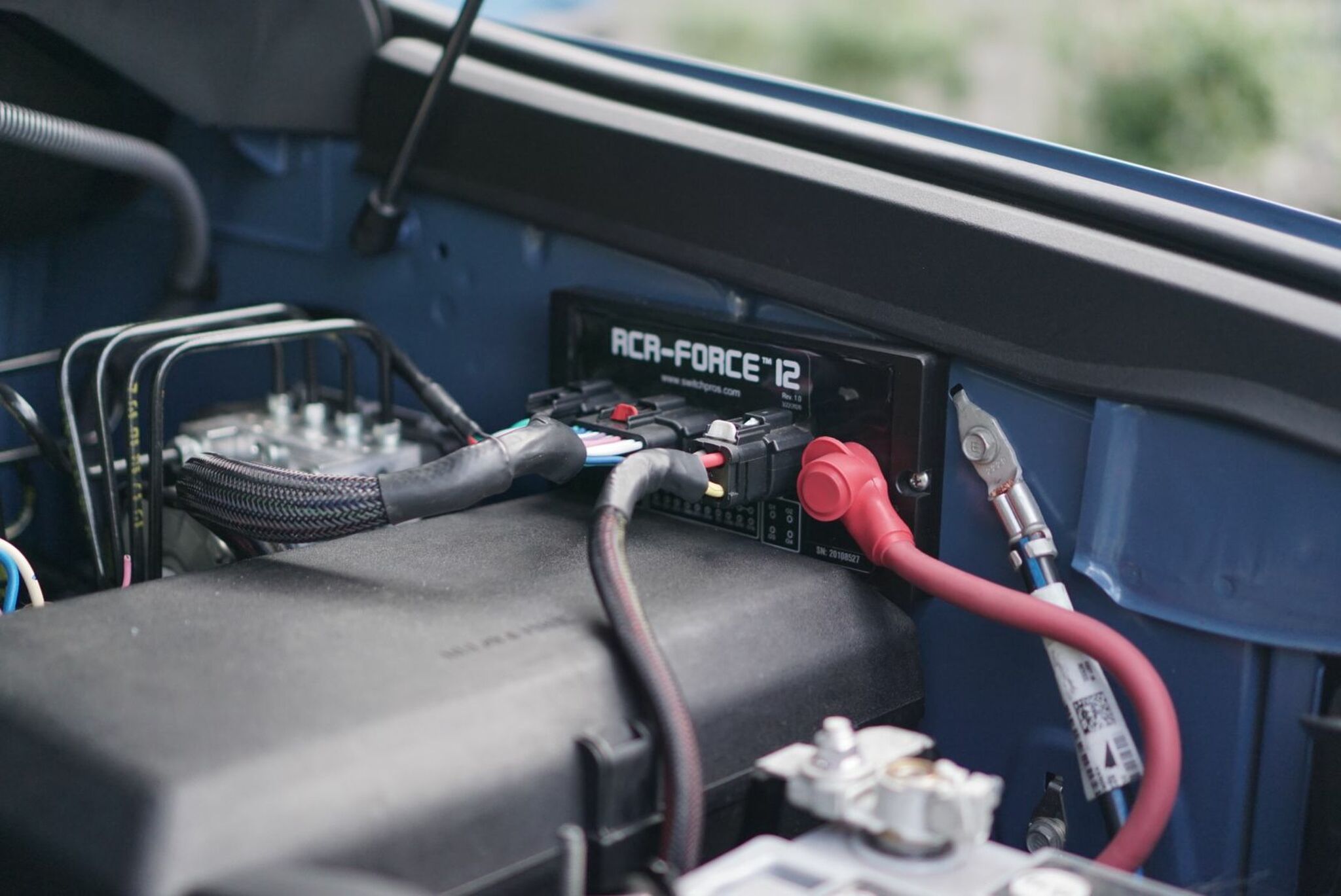

Power Module Specs:

  • 17 Outputs: 4 rated @ 35A, 1 rated @ 30A, 11 rated @15A, 1 Low Side rated @ 2A
  • 150A maximum rating
  • 7”L x 3.5”W x .5”H (excluding connectors)
  • Waterproof and Solid State
  • Underhood rated 125° to -40°C
  • LED Ignition Input Status Indicator

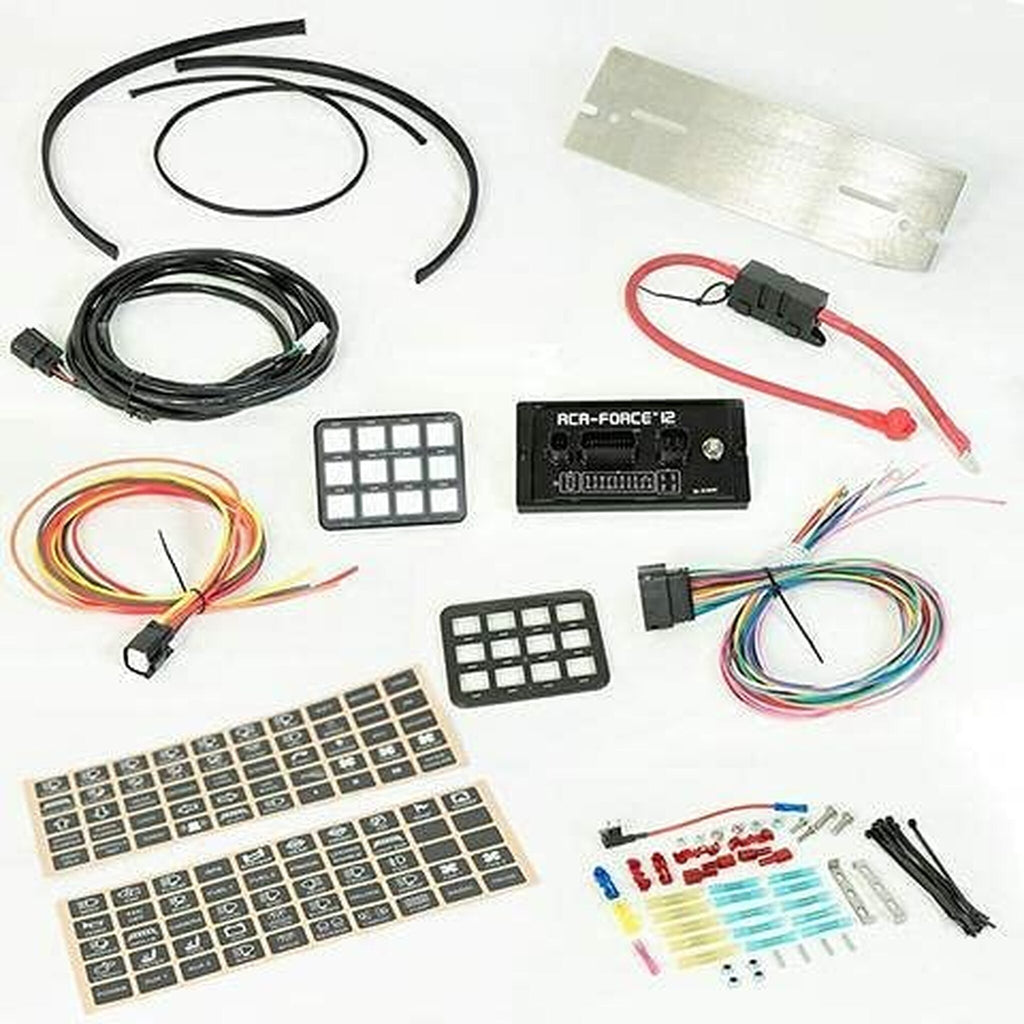

Kit Also Includes:

  • 11’ of Communication Cable between Switch Panel and Power Module
  • Power Cable with 150A inline Circuit protection
  • 100 User Selectable Legends included (Horizontal orientation)
  • Installation brackets and hardware
  • Color Coded Output wires
  • Wire harness with waterproof, sealed automotive grade connectors

Switches Can Be Programmed For:

  • Preset Dimming function WITH MEMORY (100% to 10% brightness)
  • Master Mode, with ability to turn multiple outputs On AND Off with one touch
  • Every Master Switch can control up to 4 other switch outputs
  • On-On-Off logic
  • Touch Panel lockout
  • On/Off or Momentary
  • Ignition or Battery Input
  • Flash or Strobe, with User-Selectable Strobe patterns and One Touch activation
  • Automatic Power-Up upon vehicle start up
  • Safety Lockout for specific switches
  • Time Delay off

Additional Features:

  • No bulky relay box
  • RGB Backlighting with unlimited color options
  • Three External Trigger inputs can each activate up to four outputs (Active Hi or Active Low)
  • Sleep Mode for minimal power consumption
  • Color coded output wires
  • Daisy Chain up to 3 Switch Panels to One Power Module
  • Free app for iOs and Android platforms
  • Splash proof switch panel with Polycarbonate overlay faceplate
  • LED Input Status Indicators for easy troubleshooting
  • Battery Voltage Readout on App screen
